Description
1370 CNC Milling Machine
1370 Vertical CNC Milling Machine
1370 CNC Machining Tool
1370 CNC Machine Center
1370 CNC Lathe
1370 Digital Control Machine Tool
CNC Machining Center
CNC Machining Tool
Digital Control CNC Lathe
Digital Control CNC Maching Tools:
For cutting
For milling
For drilling
For engraving
For turning
....
Multi-function
High efficiency, High Quality, High Hardness, High Stability
Low cost, Low noise, Low consumable, Less money
Yongshuo CNC Machine Center:
liHigh Precision, High Rigidity, High Stability, High Efficiency, Long Use Life.
Linear rail CNC maching Center usually refers to the rolling guide, which is often used in the linear module of the machine tool industry. We usually call this type of component a "linear guide". The linear guide itself is divided into two parts: slide rail and slider. There are internal rollers or rollers in the slide block, and the length of the slide rail can be customized. It is a modular component, a standarized series of separate products produced by a specialized manufacturer, which can be installed on a machine tool and can be disassembled and replaced after wear. Many machine tools in the field of precision machining mostly use high precision wire rail as machine tool guide, which also greatly guarantees the machining accuracy of machine tools.
The line rail CNC Machine Center is precompressed to achieve zero clearance between the tracks, with high accuracy. In terms of service life, the line rail is much higher than the hard rail.
The cutting force of the line rail is smaller than the hard rail, but for the hard rail, the line rails of many machine tools have greatly improved their carrying capacity.
The application of wire rail is suitable for high speed machine, high speed cutting, suitable for processing products and small precision moulds. Today, more precision machining centers use wire rails.
Main Application Areas:
Automobile manufacturing, spare parts processing;
Toy industry, parts processing and molding
Hardware and mechanical parts processing and rapid prototyping
Spare parts processing and rapid prototyping for electronic and electrical industry
Rapid prototyping and processing of building materials, ceramics and hardware industry
Main Machined Parts:
General type
Light industry
Aviation Industry
Boating Industry
Metallurgy
Instruments and Apparatus
Electric appliance
Stainless Steel Products
Steel structure building
Architectural decoration
Carpentry
Plastic
Aluminium parts
All general-purpose machine parts
Main Parameters Specification List:
| CNC Milling Machines. (Vertical CNC Machine Center) | |
| TECHNICAL DATA | YSV1370 |
| CNC Controller System | FANUC or MITSUBISHI or SIEMENS |
| Workbench Size(MM) | 1500*700 |
| Process Distance In X-axis(MM) | 1300 |
| Process Distance In Y-axis(MM) | 700 |
| Process Distance In Z-axis(MM) | 750 |
| Worktable to Spindle Nose(MM) | 170-920 |
| Spindle Center to Column Spacing | 740 |
| Max. Loading Weight(KG) | 1000 |
| T-Groove Width/Spacing(MM) | 5-22*135 |
| Range of Spindle Speed(RPM) |
Continuously viable 8000/10000 12000 Direct connection |
| Spindle Taper | BT40 |
| Moving Speed(M/MIN) | 24/24/18 |
| Cutting Feed Speed(M/MIN) | 8 |
| Repeated Position Accuracy (300mm) | ±0.003 |
| XYZ-axis Ball Screw Specification | 5010 |
|
X-axis Linear Guide Specification(MM) |
45Six-slider |
|
Y-axis Linear Guide Specification(MM) |
45Four-rail |
|
z-axis Linear Guide Specification(MM) |
55 |
| Principal Axis Motor(KW) | 11/15 |
| Tool Capacity | 24 |
| Floor Space(M) | 3.8*2.9*2.9 |
| Weight(T) | 11 |

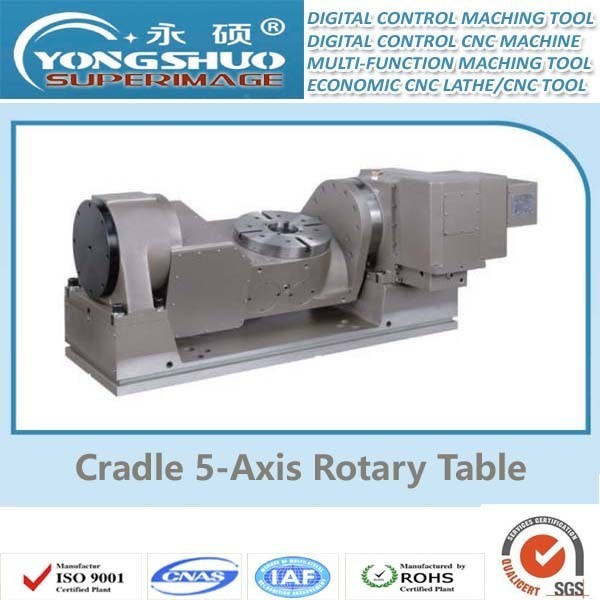

| * Note: 4-Axis Rotary Tables & 5-Axis Rotary Tables and matching system can be configurated as per the request of the users. | |
Wecome to visit our factory in shanghai. YoungShuo-SuperImage offers professional training for users and distributors.
The distributors all over the world are wanted.
