Description
General Introduction: The Raytek Brewster prism can be a key component in ultrashort pulse laser system. These prisms are used in the cavity to compensate the dispersion of fixed cavity optical elements (such as Ti: sapphire crystal), or in the external cavity to manipulate the pulse characteristics

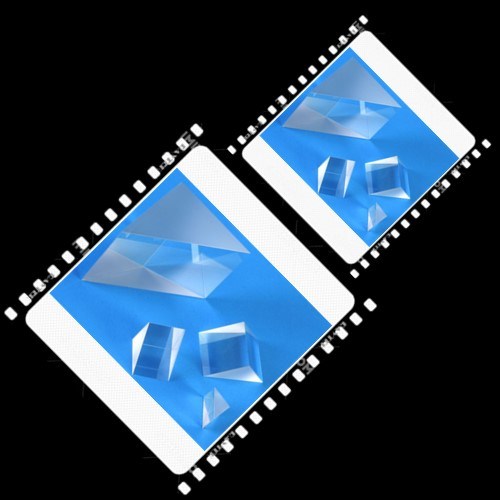

Products Name: Brewster Angle Dispersing Prisms
Alias: Brewster Angle Dispersing Prisms For Ultrashort Pulses, Brewster Prism, Brewster angle prims, Brewster dispersing prism, Ultrashort pulses prism, Ultrashort pulses Brewster prism, etc
Prism Substrates:
UVFS
SF10
N-LAKL21
Coating:
Uncoated
Main Applying:
Products Highlights:
1).Uvfs, SF10 or n-lakl21 equivalent substrate
2).For accurate dispersion compensation
3).For external cavity pulse operation
4).Dimensions are 15 mm or 25 mm
5).Different grades materials for option.
6).High precision & high surface roughness;
7).Sizes can be customized as per the customers' request
8).Quick lead time and delivery time.
9).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
10).Excellent post-sale quality warranty, with "3R"-return, replace & refund policy
Main Optical Tech Specification:
Popular Physical Size Specification:
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Products Name: Brewster Angle Dispersing Prisms
Alias: Brewster Angle Dispersing Prisms For Ultrashort Pulses, Brewster Prism, Brewster angle prims, Brewster dispersing prism, Ultrashort pulses prism, Ultrashort pulses Brewster prism, etc
Prism Substrates:
UVFS
SF10
N-LAKL21
| Optional I: |
UVFS/SF10/N-LAKL21 from CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC |
| Optional II: |
Equivalent UVFS/SF10/N-LAKL21 Made in China, C-laser own brands |
Coating:
Uncoated
Main Applying:
| Applying Fields I: | Used in the cavity to compensate the dispersion of fixed cavity optical elements |
| Applying Fields II: | In the external cavity to manipulate the pulse characteristics |
| ***** |
|
Products Highlights:
1).Uvfs, SF10 or n-lakl21 equivalent substrate
2).For accurate dispersion compensation
3).For external cavity pulse operation
4).Dimensions are 15 mm or 25 mm
5).Different grades materials for option.
6).High precision & high surface roughness;
7).Sizes can be customized as per the customers' request
8).Quick lead time and delivery time.
9).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
10).Excellent post-sale quality warranty, with "3R"-return, replace & refund policy
Main Optical Tech Specification:
| Prism Shape | Brewster prism | Size Tolerance | +0/-0.25 mm |
| Prism Material | UVFS/SF10/N-LAKL21, Equivalent | Thickness Tolerance |
|
| Coating Type | Uncoated | Chamfers | 0.5 mm face width |
| Damage Threshold | - | Chamfers Angle Tolerance | 45° maximum |
|
Surface Accuracy Irregularity |
- | Thermal limit | - |
| Surface Quality | 40-20 scratch-dig | Coefficient of thermal expansion | - |
| Surface Flatness | ≤λ/10 at 632.8 nm over the clear aperture | Apex Angle |
LK10: 63.00° SB10: 69.06° SF10: 60.60° |
| Wavelength Region | - | Clear Aperture | ≥90% of face |
| OEM/ODM | Accepted | Custom Manufacturing | Available |
Popular Physical Size Specification:
| Product Code | Transmission | Size | Materials |
| RT0302001 | 370-2000 nm | 15 x 15 x 15 mm | N-LaK21 or equivalent |
| RT0302002 | 370-2000 nm | 15 x 15 x 15 mm | N-SF10 |
| RT0302003 | 370-2000 nm | 25 x 25 x 25 mm | N-LaK21 or equivalent |
| RT0302004 | 370-2000 nm | 25 x 25 x 25 mm | N-SF10 |
| RT0302005 | 185-2100 nm | 15 x 15 x 15 mm | UV Grade Fused UV |
| RT0302006 | 185-2100 nm | 25 x 25 x 25 mm | Grade Fused Silica Silica |
| Otherr | Custom | Custom | Custom |
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
