Description
General Introduction: Raytek broadband depolarized hybrid cube beam splitter is an ideal choice for multiple lasers or tunable sources. 45% of the incident beam is transmitted and 45% of the incident beam is reflected, and the S polarization component and p polarization component match within 10%.

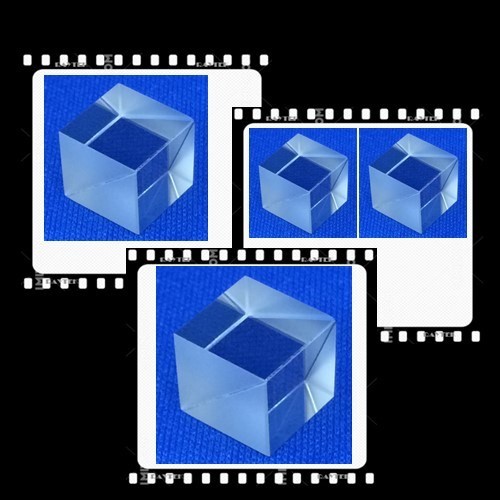

Products Name: Broadband Non-Polarizing Cube Beamsplitters
Alias: Broadband Non-Polarizing Cube Beamsplitters,
Broadband Cube Beamsplitters,Non-Polarizing Cube Beamsplitters, Cube Beamsplitters,Optical Cube Beamsplitters,Optical Beamsplitters,etc
Bandpass Filters Substrates:
Grade A N-BK7
Main Applying:
Main Characters:
1).Even the power split ratio is insensitive to polarization
2).Broadband and neutral chroma
3).The spectral response is flat in a wide range of incident angles
4).Broadband Metal-dielectric Hybrid Coatings
5).Used with tunable laser
6).Constructed with a pair of right angle prisms
Products Highlights:
1).Different grades materials for option.
2).High precision & high surface roughness;
3).Sizes can be customized as per the customers' request
4).Quick lead time and delivery time.
5).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
6).Excellent post-sale quality warranty, with "3R"-return, replace & refund policy
Main Optical Tech Specification:
Popular Physical Size Specification:
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Products Name: Broadband Non-Polarizing Cube Beamsplitters
Alias: Broadband Non-Polarizing Cube Beamsplitters,
Broadband Cube Beamsplitters,Non-Polarizing Cube Beamsplitters, Cube Beamsplitters,Optical Cube Beamsplitters,Optical Beamsplitters,etc
Bandpass Filters Substrates:
Grade A N-BK7
| Optional I: |
Grade A N-BK7 from CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC |
| Optional II: |
Equivalent Grade A N-BK7 Made in China, C-laser own brands |
Main Applying:
| Applying Fields I: |
For multiple lasers Or tunable laser source Low and medium power laser,etc. |
| Applying Fields II: | Other |
| ***** |
|
Main Characters:
1).Even the power split ratio is insensitive to polarization
2).Broadband and neutral chroma
3).The spectral response is flat in a wide range of incident angles
4).Broadband Metal-dielectric Hybrid Coatings
5).Used with tunable laser
6).Constructed with a pair of right angle prisms
Products Highlights:
1).Different grades materials for option.
2).High precision & high surface roughness;
3).Sizes can be customized as per the customers' request
4).Quick lead time and delivery time.
5).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
6).Excellent post-sale quality warranty, with "3R"-return, replace & refund policy
Main Optical Tech Specification:
| Tech Data | Description |
| Type | Cube Beamsplitters |
| Material | Grade A N-BK7 |
| Coating Type | Broadband metal-dielectric non-polarizing |
| Antireflection Coating | Multilayer broadband dielectric |
| Surface Quality | 40-20 scratch-dig |
| Surface Flatness | ≤λ/4 at 632.8 nm |
| Polarization | S- and P-polarization components matched to within 10%,|Ts - Tp| ≤10%, |Rs - Rp| ≤10% |
| Wavefront Distortion | ≤λ/4 at 632.8 nm over the clear aperture |
| Angle of Incidence | 0°±5° |
| Damage Threshold | 100 W/cm2 CW, 0.1 J/cm2 with 10 nsec pulses, typical |
| Orientation | To avoid damage, beam should enter prism marked with a dot |
| Reflection | Rs, p = 45 ±5% average, 35%≤ Rs, p ≤55% |
| Reflected Beam Deviation | 90° ±5 arc min |
| Transmission | Ts, p = 45 ±5% average, 35%≤ Ts, p ≤55% |
| Transmitted Beam Deviation | ≤5 arc min |
| Clear Aperture | >80% of central dimension |
| Operating Temperature Range | -50 to 90°C |
| Durability | MIL-C-675C |
Popular Physical Size Specification:
| Size |
6.35*6.35*6.35mm 12.7*12.7*12.7mm 25.4*25.4*25.4mm 50.8*50.8*50.8mm Design & custom manufacturing as per demand. |
| Size Tolerance | ±0.254 mm |
| Thickness | Design and custom as per demand |
| Thickness Tolerance | - |
| Wavelength Range | 400-1600nm |
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
