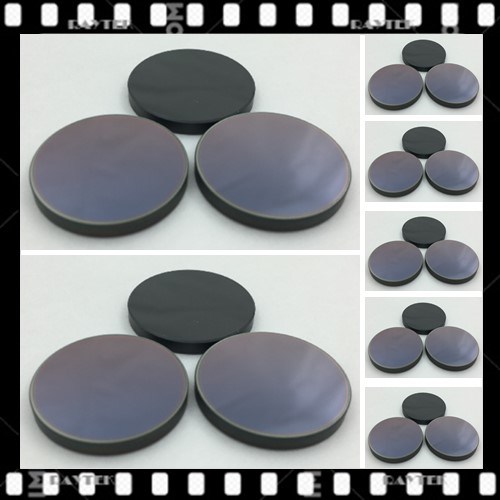

Infrared Lens/Infrared Ge Lens/Infrared Germanium Lens/IR Ge Lens/IR Germanium Lens

Description

General Introduction: Raytek produces infrared germanium lens, using optical grade single crystal germanium as the substrate, using new polishing technology processing, the surface has a very high surface accuracy, germanium lens two surfaces will be plated with 8-14 μ M antireflective film, can greatly reduce the reflectivity of the substrate, antireflective film working band transmittance of more than 95%.
Products Name:
Infrared lens/Infrared Ge Lens/Infrared Germanium Lens/IR Ge Lens/IR Germanium Lens
Alias:Infrared lens,Infrared Ge Lens,Infrared Germanium Lens,IR Ge Lens,IR Germanium Lens, IR Lens, Germanium Infrared Lens,Ge Infrared Lens, Germanium IR lens, Ge IR Lens,etc
,etc
Main Applying:
Main Highlights:
The wide spectral range of germanium (2-16um) Germanium is very suitable for infrared laser applications because of its high transmittance in the visible spectrum.It also does not react easily with air, water, alkali metals and acids (except nitric acid)
Main Technical Data: The listed prices are only for reference. The final price is up to the substrate type, substrate grade, product size, suface finish, surface quality and Physical & Optical request standards.
Main Specification:
Substrate: Germanium(Ge)
Unit:mm
Dia.=Diameter
I.F.L=Image Focal Length
B.F.L=Back Focal Length
C.T.=Central Thickness
E.T=Edge Thickness
R.O.C=Radius of Curvature

Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,J-FIBER,ETC
Main Export Countries & Areas:

Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.

Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
