Lock Sleeves for Optical Fibers Rewinding Machine

Description

Size & Specification:
ID25.4-H48

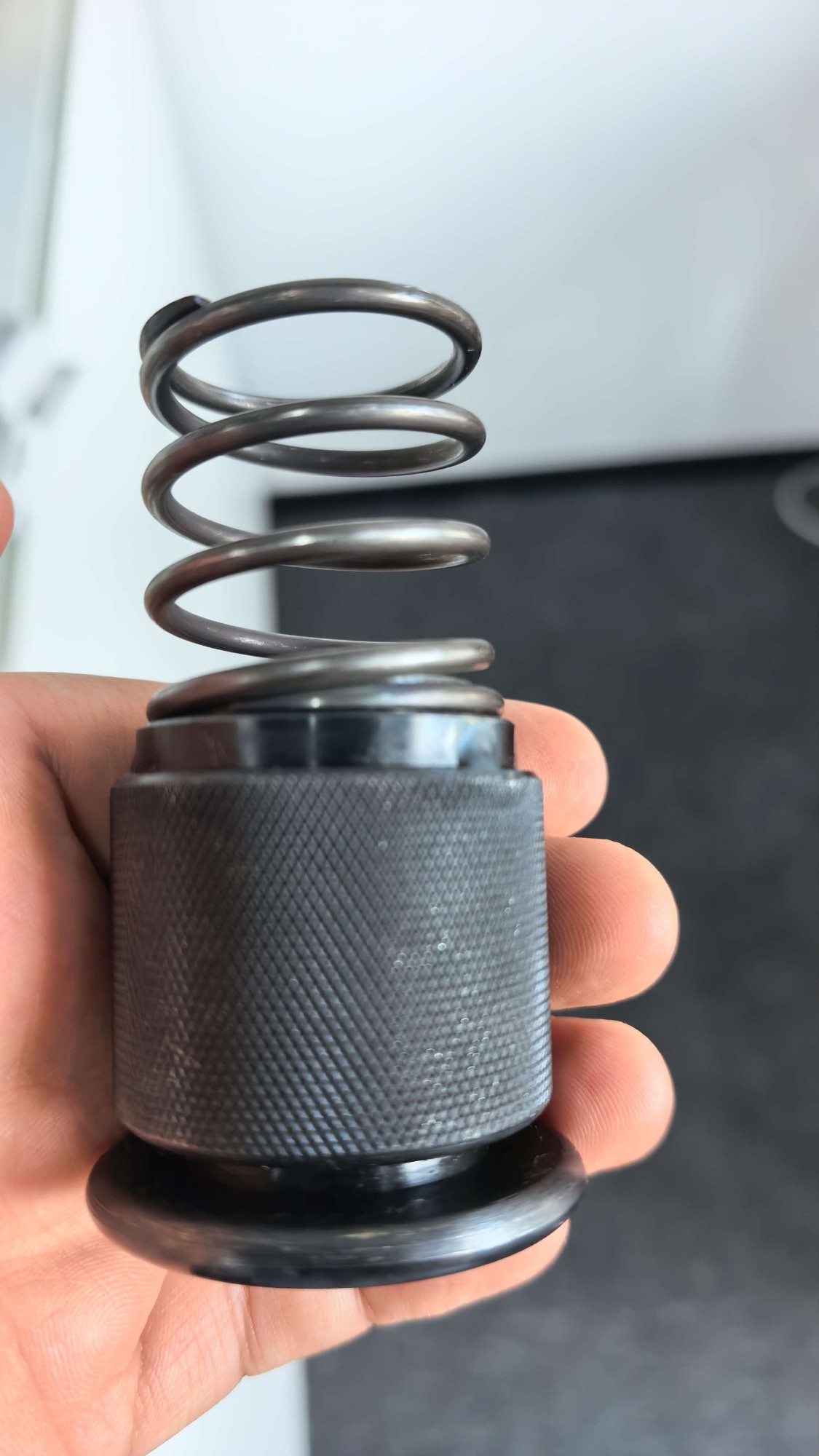

Each lock sleeve is composed of a lock sleeve shell and a lock spring.
4-1. Using purpose:
Used on RAYTEK-RFJ3C fiber rewinder as a locking and fastening component
4-2. Function:

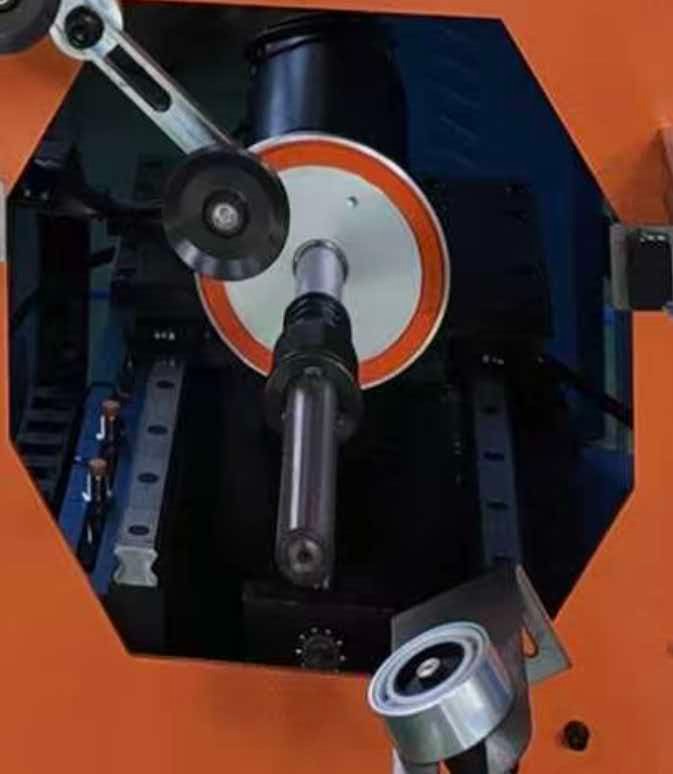

Used to lock the unwinding and rewinding wheels of the RAYTEK-RFJ3C fiber optic rewinder, and
connect the aluminum stop wheel with the rotating shaft to prevent them from loosening during high-speed
rotation。
4-3.Operating principle：
The locking sleeve consists of a locking sleeve housing and a locking spring. During installation, it is
necessary to first assemble the aluminum conductors on the unwinding and rewinding spools, then
assemble the locking sleeve, insert the unwinding and rewinding spools, and finally tighten the spring to
ensure that the aluminum guide wheel is securely connected to the shaft.
4-4. Materials and Components:
The lock sleeve shell is metal. Lock spring is metal
The lock sleeve shell seat is plastic.
4-5. Inner Structure:
It uses a hollow and unthreaded design.
4-6. Connect Method:
It is not connected by threads, it does not have threads inside. It adjusts the tightness of the connection by
adjusting the tightness of the locking sleeve through the spring inside the locking sleeve
4-7.Versatility
It is made specifically for a specific machine model, RAYTEK-RFJ3C, Optical fiber high speed rewinding
machine.
