Description
General Introduction: Raytek's precision polished aspheric lenses can condense the collimated light into the range of diffraction limited. These lenses are ideally suited for collimating the LD emitted light or focusing the collimated light into the optical fiber. High numerical apertures for effective light condensing.

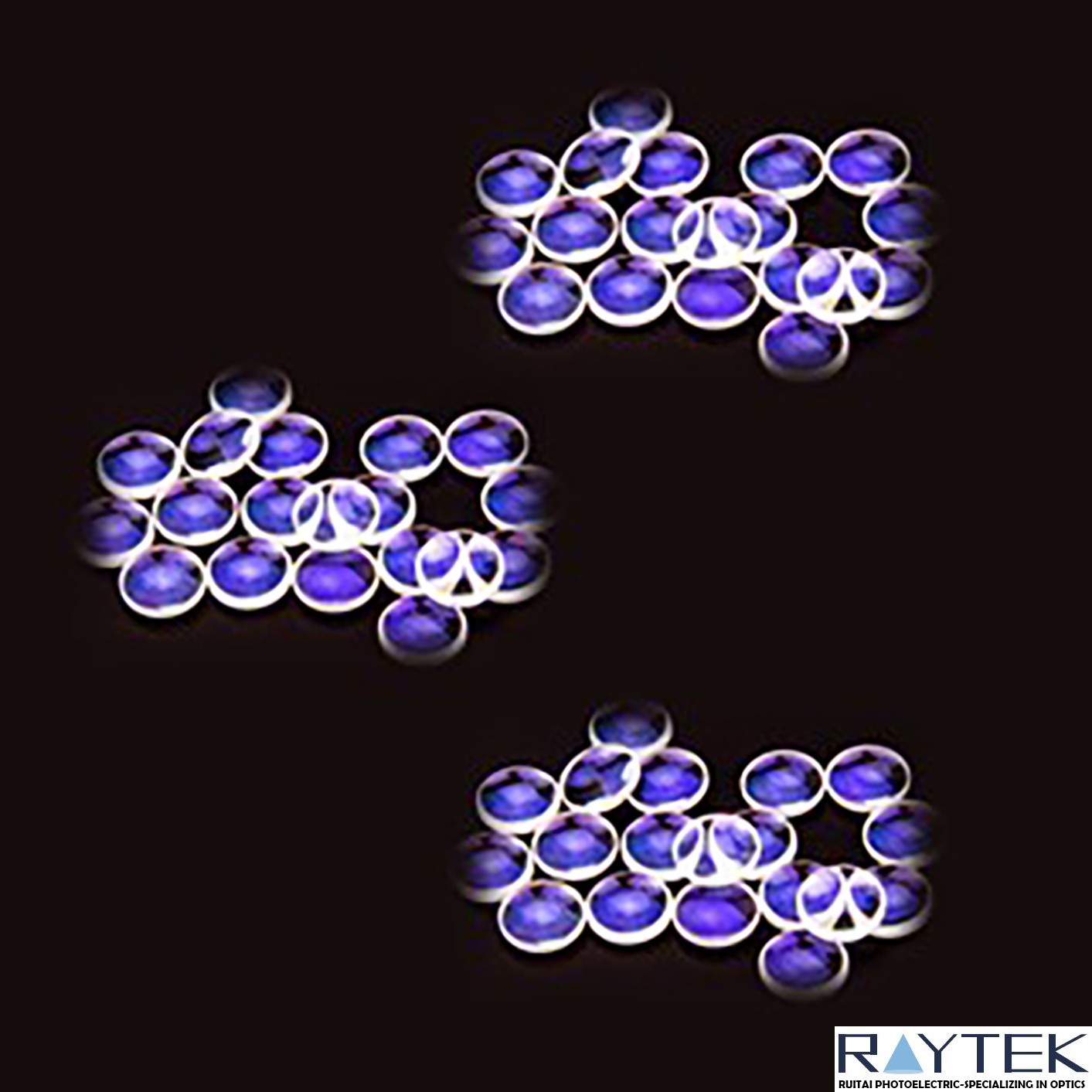

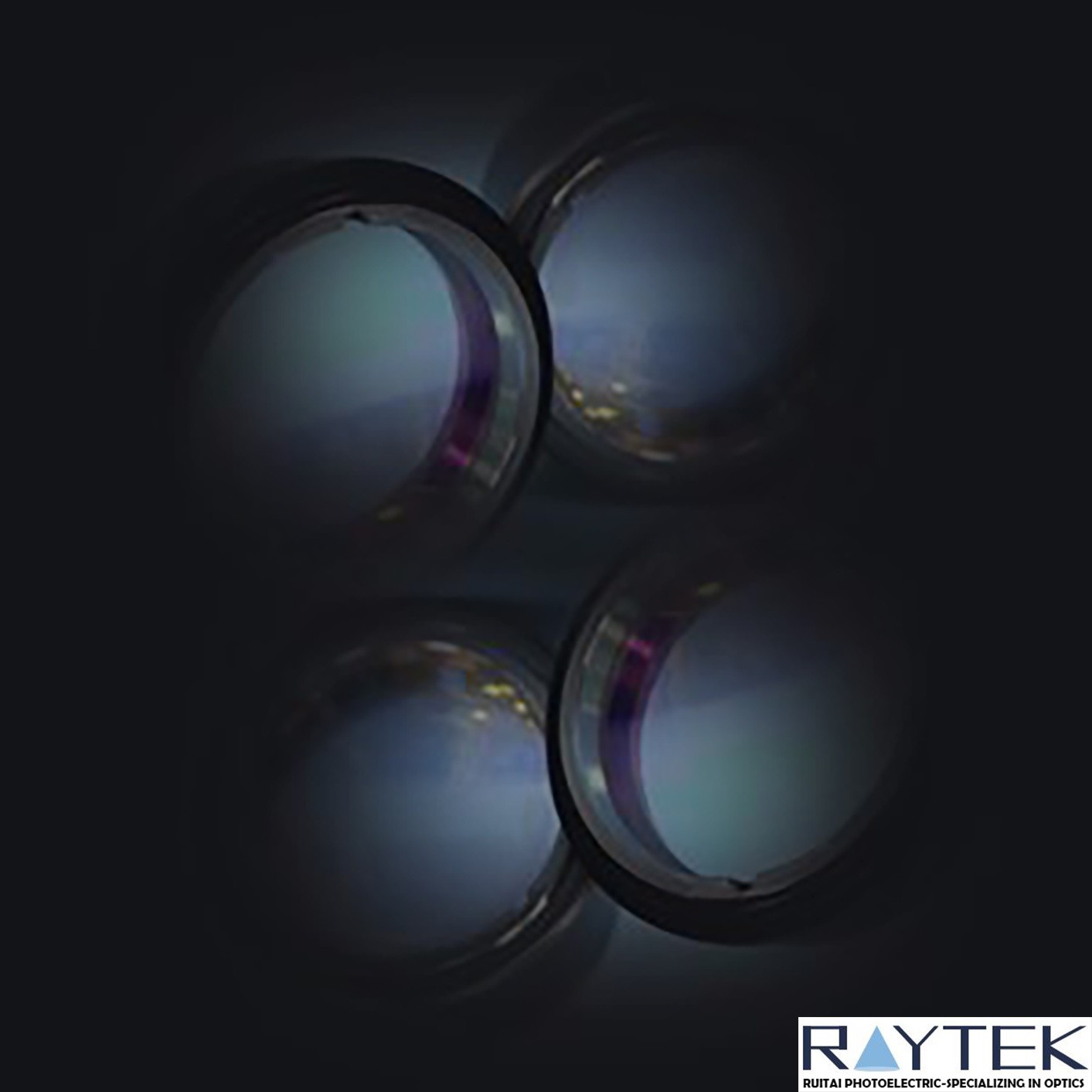

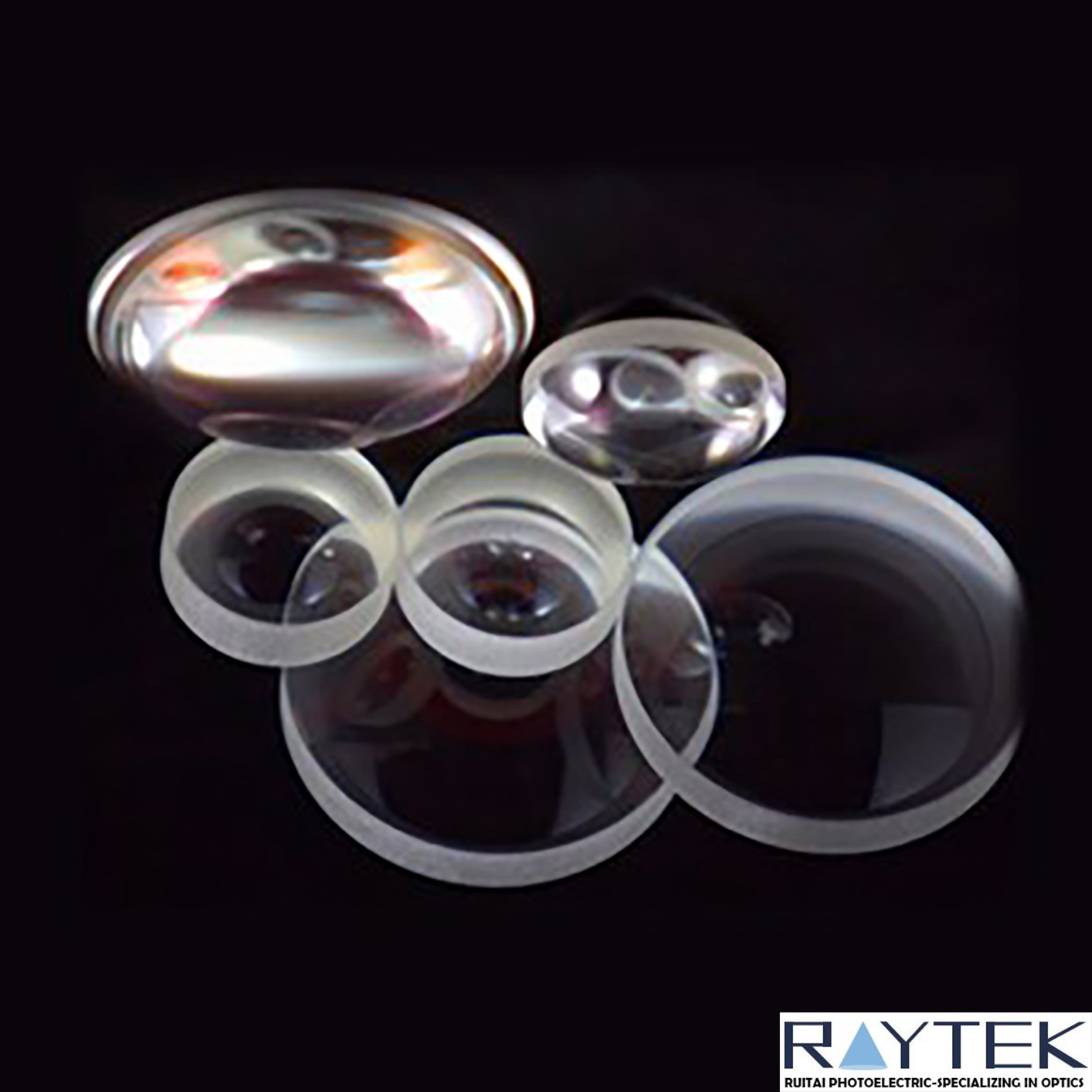

Products Name: NIR Precision Polished Aspheric Lenses
Alias: NIR Precision Polished Aspheric Lenses, Near-IR Precision Polished Aspheric Lenses, Near Infared Precision Polished Aspheric Lenses, NIR Polished Aspheric Lenses, Near-IR Polished Aspheric Lenses, NIR Aspheric Lens,etc
Main Tech Specification:
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Products Name: NIR Precision Polished Aspheric Lenses
Alias: NIR Precision Polished Aspheric Lenses, Near-IR Precision Polished Aspheric Lenses, Near Infared Precision Polished Aspheric Lenses, NIR Polished Aspheric Lenses, Near-IR Polished Aspheric Lenses, NIR Aspheric Lens,etc
Main Tech Specification:
| Universal Optical Character Tech Data |
|
| Optical Lens Type: |
Polished Aspheric Lenses Plano-Convex |
| Lens Substrate: |
L-BAL35(589/611) or custom as per the demand of customers |
| Surface Accuracy: | 0.75 µm RMS |
| Surface Quality: |
60-40 scratch-dig Or custom manufacturing as per demand |
| Coating Type: |

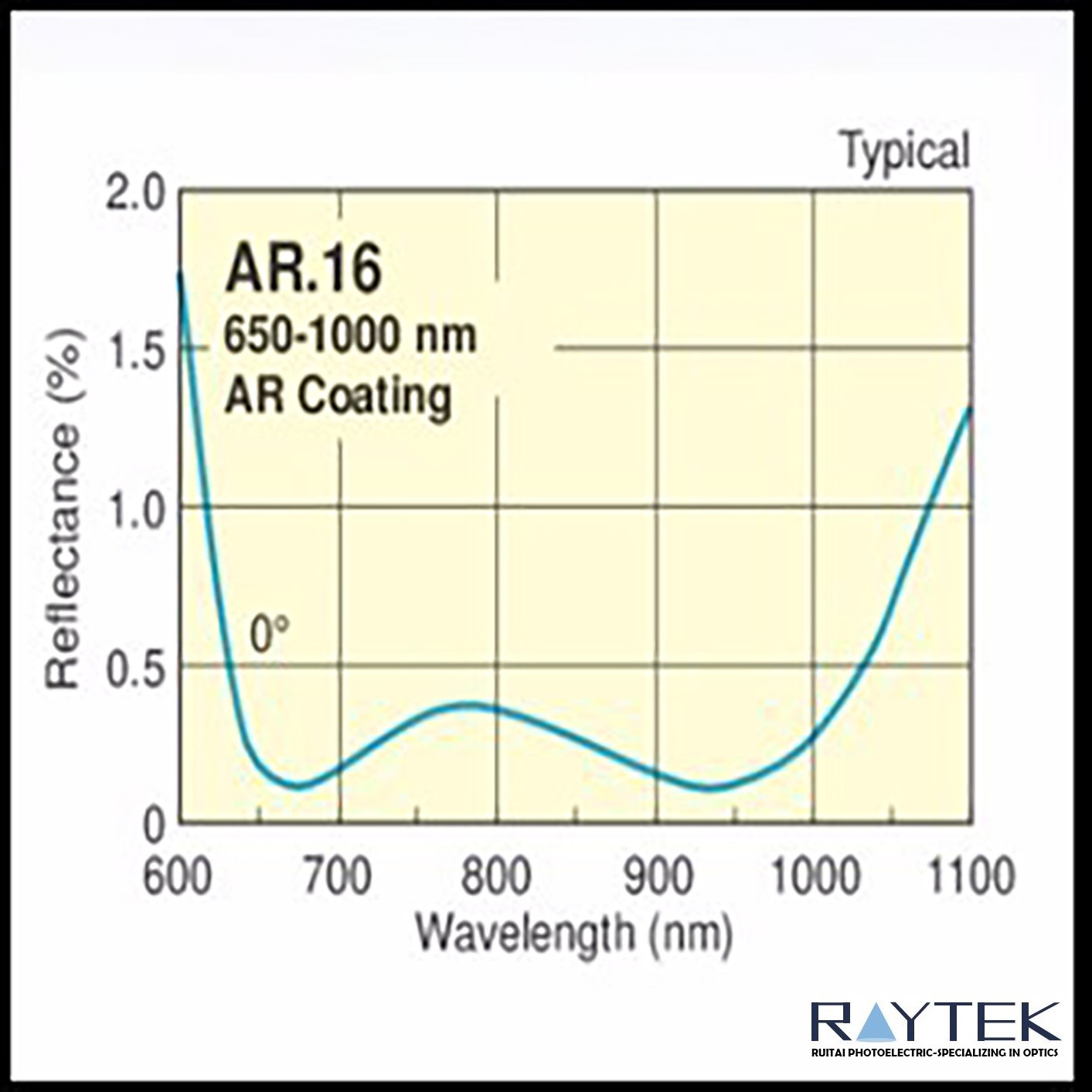

NIR Multilayer AR.16 Or custom manufacturing as per demand |
| Antireflection Coating Wavelength: |
650-1000nm Or custom manufacturing as per demand |
|
|
|
| Size/Specification Tech Data |
|
| Dia. |
2.0 mm 3.0 mm 4.0 mm 4.7 mm 5.42 mm 6.35 mm 6.3 mm 6.5 mm 6.8 mm 7.2 mm 9.0 mm 9.9 mm 12.0 mm 15.0 mm 20.0 mm 24.0 mm 25.0 mm 30.0 mm 32.5 mm 35.0 mm 40.0 mm 45.0 mm 50.0 mm 75.0 mm or custom manufacturing as per demand |
| Diameter Tolerance: | +0.0/-0.1 mm |
| Center Thickness Tolerance: | ±0.1 mm |
| Effective Focal Length(EFL): |
2.00 mm 2.72 mm 2.75 mm 2.80 mm 2.95 mm 2.97 mm or custom manufacturing as per demand |
| Other Available Coating Workcraft: |
Uncoated 350-700 nm 400-700 nm 430-700 nm 600-1050 nm 650-1000 nm Or custom manufacturing as per demand |
| Other Available Lens Substrates: |
L-BAL 35(589/611) B270 D-LaK D-ZK3 D-ZLaF52LA18 D-ZLaF52La9 ECO5508 L-BAL 35 (589/611)48 7980/7979/7972/7973/SQ0/1/8655/SK1300/1310 NIFS/BK7/N-SF6/N-SSK/SBL7/Zerodur/CaF2/SIC |
|
|
|
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
