Description

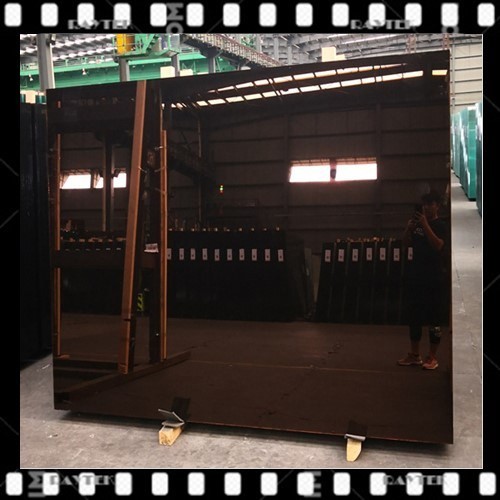

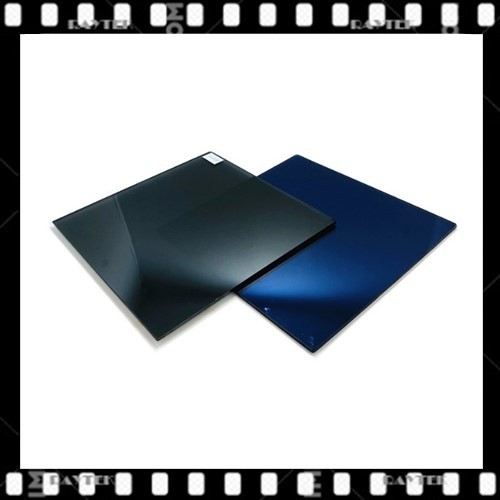

General Introduction: Raytek Coated glass is also called offline reflective glass. Coated glass is to coat one or more layers of metal, alloy or metal compound film on the surface of glass to change the optical properties of glass and meet certain requirements.
Thermal reflective glass is generally a film composed of one or more layers of metal or its compounds such as chromium, titanium or stainless steel on the surface of glass, which makes the product rich in color, has appropriate transmittance for visible light, high reflectivity to infrared ray and high absorption rate of coated glass for ultraviolet. Therefore, it is also called sunlight control glass, mainly used for building and glass curtain wall; Low radiation glass is a thin film system which is coated on the surface of glass by multilayer silver, copper or tin or other metals or its compounds. The products have high transmittance to visible light, high reflectivity to infrared ray and good heat insulation performance. It is mainly used for building, automobile, ship and other communication tools. Because of the poor film strength, it is generally used for hollow glass; Conductive film glass is a kind of conductive film, such as indium tin oxide, which can be used for heating, defrosting, defogging and liquid crystal display.
Products Name: Offline reflective glass/Coated glass/Color coated glass/Color reflective glass
Alias:Offline reflective glass, coated glass, color coated glass, color reflective glass, offline reflective coated glass, heat reflective glass,Coated color glass, construction glass, construction coated color glass, building glass, etc
Main Applying:
Main Highlights:
1) . High quality tempered, high strength
2) . Thermal insulation
3) . Sound insulation
4) . Sunshade and heat insulation
5) . Safety protection
6) . Dustproof, easy to clean
7) . Free daylight
8) . Excellent frost resistance
Main Technical Data:
The listed prices are only for reference. The final price is up to the substrate type, substrate grade, product size, suface finish, surface quality and Physical & Optical request standards.
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,J-FIBER,ETC
Main Export Countries & Areas:
Thermal reflective glass is generally a film composed of one or more layers of metal or its compounds such as chromium, titanium or stainless steel on the surface of glass, which makes the product rich in color, has appropriate transmittance for visible light, high reflectivity to infrared ray and high absorption rate of coated glass for ultraviolet. Therefore, it is also called sunlight control glass, mainly used for building and glass curtain wall; Low radiation glass is a thin film system which is coated on the surface of glass by multilayer silver, copper or tin or other metals or its compounds. The products have high transmittance to visible light, high reflectivity to infrared ray and good heat insulation performance. It is mainly used for building, automobile, ship and other communication tools. Because of the poor film strength, it is generally used for hollow glass; Conductive film glass is a kind of conductive film, such as indium tin oxide, which can be used for heating, defrosting, defogging and liquid crystal display.
Products Name: Offline reflective glass/Coated glass/Color coated glass/Color reflective glass
Alias:Offline reflective glass, coated glass, color coated glass, color reflective glass, offline reflective coated glass, heat reflective glass,Coated color glass, construction glass, construction coated color glass, building glass, etc
Main Applying:
| Applying 1 | buildings |
| Applying 2 | glass curtain wall |
| Applying 3 | Glass guardrail, decorative partition, door and window decoration |
Main Highlights:
1) . High quality tempered, high strength
2) . Thermal insulation
3) . Sound insulation
4) . Sunshade and heat insulation
5) . Safety protection
6) . Dustproof, easy to clean
7) . Free daylight
8) . Excellent frost resistance
Main Technical Data:
| Technical Data | Description & Value |
| Substrate | Tempered glass |
| Size | Customize as per demand |
| Thickness | Customize as per demand |
| Size Tolerance | +/-0.5mm |
| Thickness Tolerance | +/-0.2mm |
| Heat Transfer Coefficient | K≤1.7, Insulation temperature≥23ºC |
| Occlusion rate of VIS light | >=95% |
| Anti condensation | -60 ºCNo condensation |
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,J-FIBER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
