Description
General Introduction: The Raytek dark glass filter absorbs in the visible wavelength range and transmits in the ultraviolet (UV) wavelength range. The filter is made of high quality Hoya u-330 or u-340 visible light absorbing glass or domestic glass of the same quality, which is used to extract ultraviolet wavelength.
Products Name: Visible Absorbing UV Bandpass Filters
Alias: Visible Absorbing Bandpass Filters, Visible Absorbing Filters, Visible Absorbing Optical filters, UV bandpass optical filters, Visible absorbing optical filters, UV transmission and visible absorption filters, UV transmission filters, etc
Bandpass Filters Substrates:
Hoya U-330 or U-340 dark glass
Main Applying:
Main Characters:
1).UV transmission and visible absorption filters
2).Hoya u-330 or u-340 dark glass

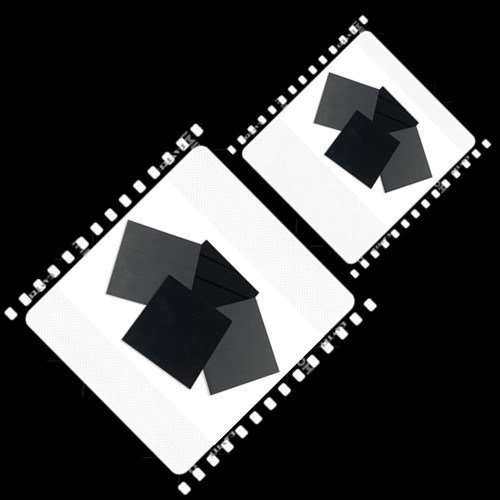

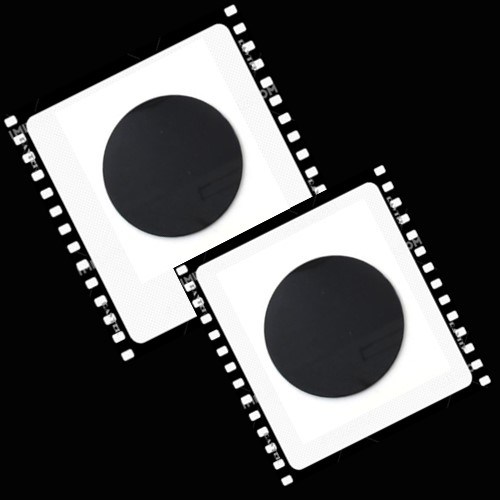

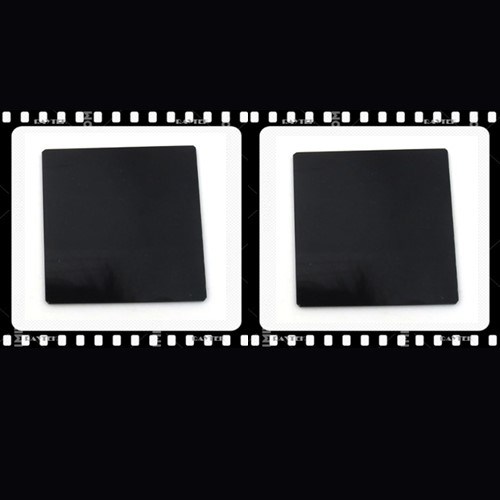

3).25.4 mm diameter or 50.8 x 50.8 mm
4).Hoya u-330 or u-340 glass
5).The light filter glass for transmitting / absorbing visible light by Hoya ultraviolet is used to pass through the ultraviolet wavelength while blocking the visible spectrum
Products Highlights:
1).Different grades materials for option.
2).High precision & high surface roughness;
3).Sizes can be customized as per the customers' request
4).Quick lead time and delivery time.
5).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
6).Excellent post-sale quality warranty, with "3R"-return, replace & refund policy
Main Optical Tech Specification:
Popular Physical Size Specification:
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Products Name: Visible Absorbing UV Bandpass Filters
Alias: Visible Absorbing Bandpass Filters, Visible Absorbing Filters, Visible Absorbing Optical filters, UV bandpass optical filters, Visible absorbing optical filters, UV transmission and visible absorption filters, UV transmission filters, etc
Bandpass Filters Substrates:
Hoya U-330 or U-340 dark glass
| Optional I: |
Hoya U-330 or U-340 dark glass from CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC |
| Optional II: |
Equivalent Hoya U-330 or U-340 dark glass Made in China, C-laser own brands |
Main Applying:
| Applying Fields I: | Industrial camera, laser products, etc |
| Applying Fields II: | Other |
| ***** |
|
Main Characters:
1).UV transmission and visible absorption filters
2).Hoya u-330 or u-340 dark glass
3).25.4 mm diameter or 50.8 x 50.8 mm
4).Hoya u-330 or u-340 glass
5).The light filter glass for transmitting / absorbing visible light by Hoya ultraviolet is used to pass through the ultraviolet wavelength while blocking the visible spectrum
Products Highlights:
1).Different grades materials for option.
2).High precision & high surface roughness;
3).Sizes can be customized as per the customers' request
4).Quick lead time and delivery time.
5).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
6).Excellent post-sale quality warranty, with "3R"-return, replace & refund policy

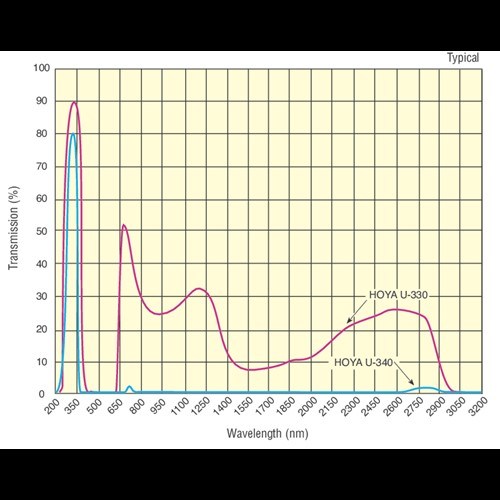

Main Optical Tech Specification:
| Tech Data | Description |
| Type | Visible Absorbing Filter |
| Center Wavelength | 330 nm/340 nm |
| Surface Quality | 60-40 scratch-dig |
| Clear Aperture | central ≥ 80% of area |
| Angle of Incidence | 0° |
| Damage Threshold | 30 W/cm CW2, Typical |
| Wedge | ≤3 arc min |
| Chamfers | Up to 1 mm face width |
| Chamfers Angle Tolerance | 45° ±15° |
Popular Physical Size Specification:

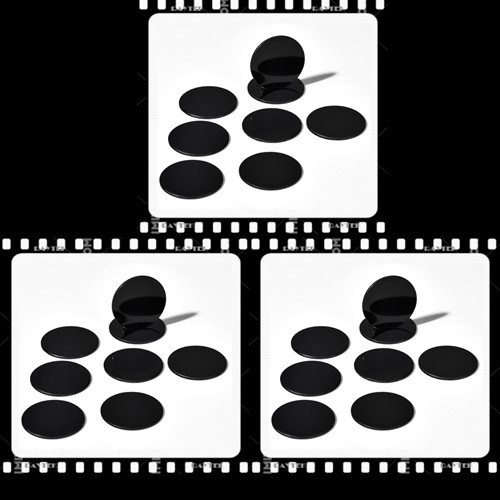

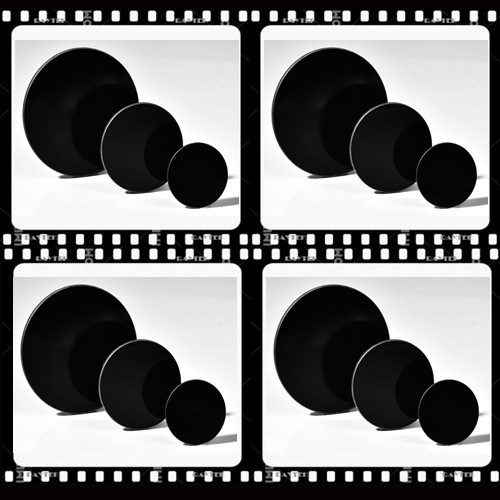

| Size | 12.7mm,25.4mm,50.8mm,or custom manufacturing |
| Size Tolerance | ±0.3 mmor design as per demand |
| Thickness | 2.0 to 3.0 mm, typical |
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
