Description
General Introduction: Raytek's 350-700nm antireflection film C-laser Molded glass aspheric lens is a very economical choice for high magnification collimating or focusing light. These lenses are made of low dispersion materials and are suitable for applications such as fiber coupling, collimating laser diodes and laser scanning.

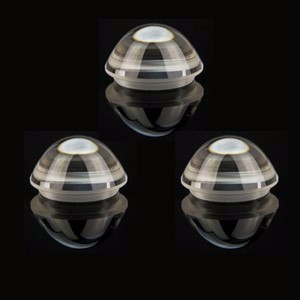

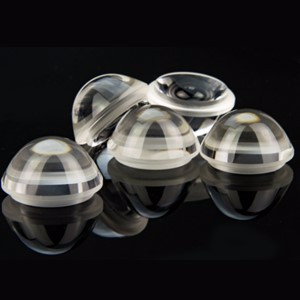

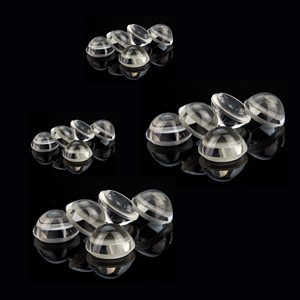

Products Name: Visible Molded Glass Aspheric Lenses
Alias: Visible Molded Glass Aspheric Lenses, Molded Glass Aspheric Lens, Glass Aspheric Lens, Molded Aspheric Lens, VIS Molded Glass Aspheric Lens, VIS Molded Aspheric Lens,etc
Products Highlights:
1).350-700 nm visible antireflection coatings
2).Aspheric surface reduces spherical aberration
3).Economic choice of collimating or focusing light
4).Grinding polished spherical and flat surfaces
5).Aspheric lens surface can reduce spherical aberration
6).High precision & high surface roughness;
7).Sizes can be customized as per the customers’ request
8).Quick lead time and delivery time.
9).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
10).Excellent post-sale quality warranty, with “3R”-return, replace & refund policy
Main Tech Specification:
|
Universal Optical Character Tech Data |
|
|
Optical Lens Type: |
Molded Glass Aspheric Lenses Plano-convex Bi-convex |
|
Lens Substrate: |
Molded glass(Molded Fused Silicon glass) or custom as per the demand of customers |
|
Surface Quality: |
40-20 scratch-dig Or custom manufacturing as per demand |
|
Coating Type: |

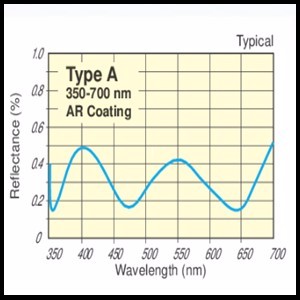

Single-layer visible Type A AR Coating Or custom manufacturing as per demand |
|
Antireflection Coating Wavelength: |
350-700nm Or custom manufacturing as per demand |
|
|
|
|
Size/Specification Tech Data |
|
|
Dia. |
2.0 mm 3.0 mm 4.0 mm 4.7 mm 5.42 mm 6.35 mm 6.3 mm 6.5 mm 6.8 mm 7.2 mm 9.0 mm 9.9 mm 12.0 mm 15.0 mm 20.0 mm 24.0 mm 25.0 mm 30.0 mm 32.5 mm 35.0 mm 40.0 mm 45.0 mm 50.0 mm 75.0 mm or custom manufacturing as per demand |
|
Effective Focal Length(EFL): |
2.00 mm 2.72 mm 2.75 mm 2.80 mm 2.95 mm 2.97 mm or custom manufacturing as per demand |
|
Other Available Coating Workcraft: |
Uncoated 350-700 nm 400-700 nm 430-700 nm 600-1050 nm 650-1000 nm Or custom manufacturing as per demand |
|
Other Available Lens Substrates: |
Molded glass Fused silicon glass B270 D-LaK D-ZK3 D-ZLaF52LA18 D-ZLaF52La9 ECO5508 L-BAL 35 (589/611)48 7980/7979/7972/7973/SQ0/1/8655/SK1300/1310 NIFS/BK7/N-SF6/N-SSK/SBL7/Zerodur/CaF2/SIC |
|
|
|
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas: Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with “3R” policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
