Description
General Introduction: The non-polarized flat plate beam splitter of Raytek laser is designed for splitting or combining laser beams. Nonpolarized slab beam splitter and high energy Nd: YAG laser beam splitter can achieve 50 / 50 beam splitting performance. The high-energy Nd: YAG laser harmonic beam splitter is used as a two-color filter to separate the laser harmonics. Raytek's linear depolarization beam splitter is insensitive to the polarization of the incident beam. The polarization component matching is within 5%..
Products Name: Laser Line Non-Polarizing Plate Beamsplitters
Alias: Laser Line Non-Polarizing Plate Beamsplitters,Laser Line Plate Beamsplitters, Laser Line Plate Beam splitters, Laser non-polarizing plate beamsplitters, Laser beam splitter plate, etc
Bandpass Filters Substrates:
Grade A N-BK7
Main Applying:
Main Characters:
1).Virtually zero absorption for true 50/50 beamsplitters
2).Designed for 45° angle of incidence with random polarization
3).AR coated back surface eliminates ghosting
4).Slight wedge to eliminate internal fringes
5).Convenient mounting in standard optical mirror mounts
6).Laser Line Beamsplitter Construction
7).Better than Broadband Dielectric Beamsplitters
Products Highlights:
1).Different grades materials for option.
2).High precision & high surface roughness;
3).Sizes can be customized as per the customers' request
4).Quick lead time and delivery time.
5).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
6).Excellent post-sale quality warranty, with "3R"-return, replace & refund policy
Main Optical Tech Specification:
Popular Physical Size Specification:
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Products Name: Laser Line Non-Polarizing Plate Beamsplitters
Alias: Laser Line Non-Polarizing Plate Beamsplitters,Laser Line Plate Beamsplitters, Laser Line Plate Beam splitters, Laser non-polarizing plate beamsplitters, Laser beam splitter plate, etc
Bandpass Filters Substrates:
Grade A N-BK7
| Optional I: |
Grade A N-BK7 from CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC |
| Optional II: |
Equivalent Grade A N-BK7 Made in China, C-laser own brands |
Main Applying:
| Applying Fields I: | Parallel transmission of information and energy in laser communication, optical storage, optical interconnection, laser 3D imaging, laser processing and other fields. |
| Applying Fields II: |
In laser communication, multi-channel parallel transmission of fan out and lidar multi-point parallel transmitting antenna is proposed; In laser processing, the two-dimensional multi-point laser drilling, laser marking, fast multi-point parallel 3D laser printing, as well as the multi-point array laser spot removing and laser skin rejuvenation in laser micro invasive medical and beauty treatment. |
| ***** |
|
Main Characters:
1).Virtually zero absorption for true 50/50 beamsplitters
2).Designed for 45° angle of incidence with random polarization
3).AR coated back surface eliminates ghosting
4).Slight wedge to eliminate internal fringes
5).Convenient mounting in standard optical mirror mounts
6).Laser Line Beamsplitter Construction
7).Better than Broadband Dielectric Beamsplitters
Products Highlights:
1).Different grades materials for option.
2).High precision & high surface roughness;
3).Sizes can be customized as per the customers' request
4).Quick lead time and delivery time.
5).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
6).Excellent post-sale quality warranty, with "3R"-return, replace & refund policy
Main Optical Tech Specification:
| Tech Data | Description |
| Type | Plate Beam splitters |
| Material | Grade A N-BK7 |

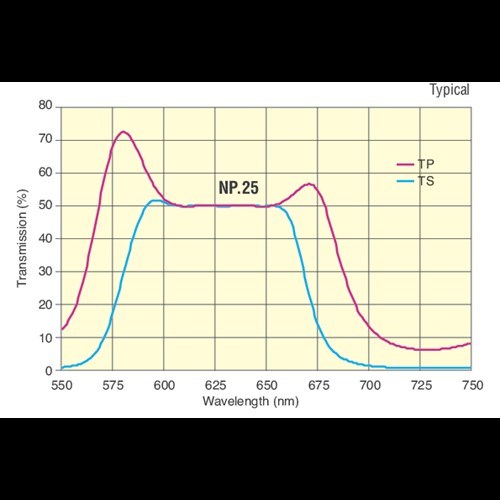

| Coating Type | NP.22/NP.24/NP.25/NP.27/NP.28/NP.29/NP.31 |
| Antireflection Coating | R <0.5% |
| Surface Quality | 15-5 scratch-dig |
| Surface Flatness | ≤λ/10 at 632.8 nm over the clear aperture |
| Extinction Ratio | - |
| Wavefront Distortion | ≤λ/10 at 632.8 nm over the clear aperture |
| Angle of Incidence | 45°±3° |
| Damage Threshold | 500 W/cm2 CW, 0.5 J/cm2 for 10 ns 1064 nm pulses, typical |
| Orientation | Beam should enter surface marked with an arrow |
| Reflection | 50 ±5%, independent of polarization |
| Reflected Beam Deviation | - |
| Transmission | 50 ±5%, independent of polarization |
| Transmitted Beam Deviation | - |
| Clear Aperture | > central 80% of diameter |
| Polarization | S- and P-polarization components matched to within 5% |
| Operating Temperature Range | - |
| Parallelism(Wedge) | 30 ±15 arc min |
| Chamfers | 0.5 mm face width |
| Chamfers Angle Tolerance | 45° ±15° |
| Durability | MIL-C-675C, moderate abrasion million cycles |
Popular Physical Size Specification:
| Size |
25.4mm or Design & custom manufacturing as per demand. |
| Size Tolerance | +0/-0.13 mm |
| Thickness |
6.1mm Or Design and custom as per demand |
| Thickness Tolerance | ±0.38 mm |
| Wavelength Range | 488nm/532nm/632.8nm/780nm/830nm/1064nm/1550nm |
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
