Optical Cylindrical Lens/Cylindrical Optical Lens/Cylindrical Lenses/Cylindrical Lens

Description

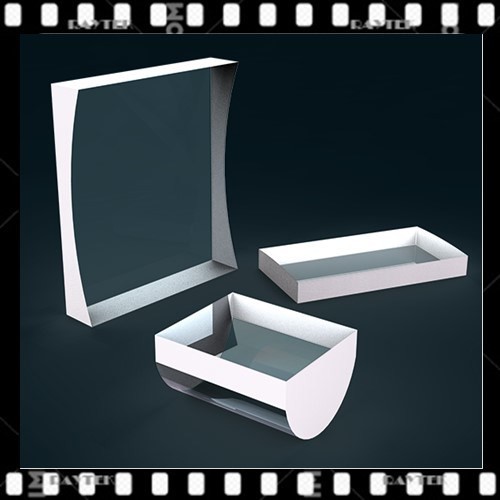

General Introduction: Raytek cylindrical lens is a circular or rectangular lens with a cylindrical surface. Unlike spherical lenses, they focus the beam into a focal line instead of a focal point.
The transmission ability of the lens can be increased by coating antireflective films on both sides of the lens and using multilayer films in some spectral bands. The cylindrical lens can be made of ZnSe, Ge, Si and other infrared materials.
Cylindrical mirror is an ideal choice for one-dimensional amplification applications.
The effect of the spherical mirror on the incident light in two directions is symmetrical, while the cylindrical mirror acts on the incident light in two directions. The mirror has only one effect on the incident light. A typical application is to use a pair of cylindrical lenses to shape the deformed beam. A pair of cylindrical mirrors can be used to collimate and round the output of laser diode. Another possible application is to use a single column.The mirror focuses the divergent beam on the detector array. In order to minimize spherical aberration, collimation should be used when the beam is focused into a line.
The straight light source is incident from the curved surface of the lens, and the line light source should be incident from the plane of the lens when the line light source is collimated.
Products Name: Optical Cylindrical lens/Cylindrical Optical Lens/Cylindrical Lenses
Alias: Optical cylindrical lens, Cylindrical optical lens, Cylindrical lenses, Square Cylindrical lens, Cylindrical mirrors, etc
Main Applying:
Main Highlights:
1).The cylindrical mirror is an aspheric lens, which can effectively reduce spherical aberration and chromatic aberration;
2).It has many kinds and uses;
3).A variety of manufacturing materials to meet different needs;
4).In some spectral bands, multilayer films can be used to increase the transmission ability
Main Specification:
Main Size Specification:
I.F.L=Image Focal Length
B.F.L=Back Focal Length
C.T.=Central Thickness
E.T.=Edge Thickness
R.O.C=Radius of curvature
Unit: mm The listed prices are only for reference. The final price is up to the substrate type, substrate grade, product size, suface finish, surface quality and Physical & Optical request standards.
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,J-FIBER,ETC
Main Export Countries & Areas:

Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.

Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
