General Introduction: Raytek UV fused Silica Plano-Concave lens can be coated with multilayer antireflective film or without coating. All lenses are guaranteed λ/ 8 surface accuracy and 20-10 scratch-dig surface quality. UV fused silica is a highly pure synthetic amorphous silica, which can provide transmittance of 195-2100nm. This amorphous colorless quartz glass combines very low thermal expansion coefficient, good optical quality and excellent transmittance in the ultraviolet band. Moreover, it does not emit fluorescence under ultraviolet light and is radiation resistant.

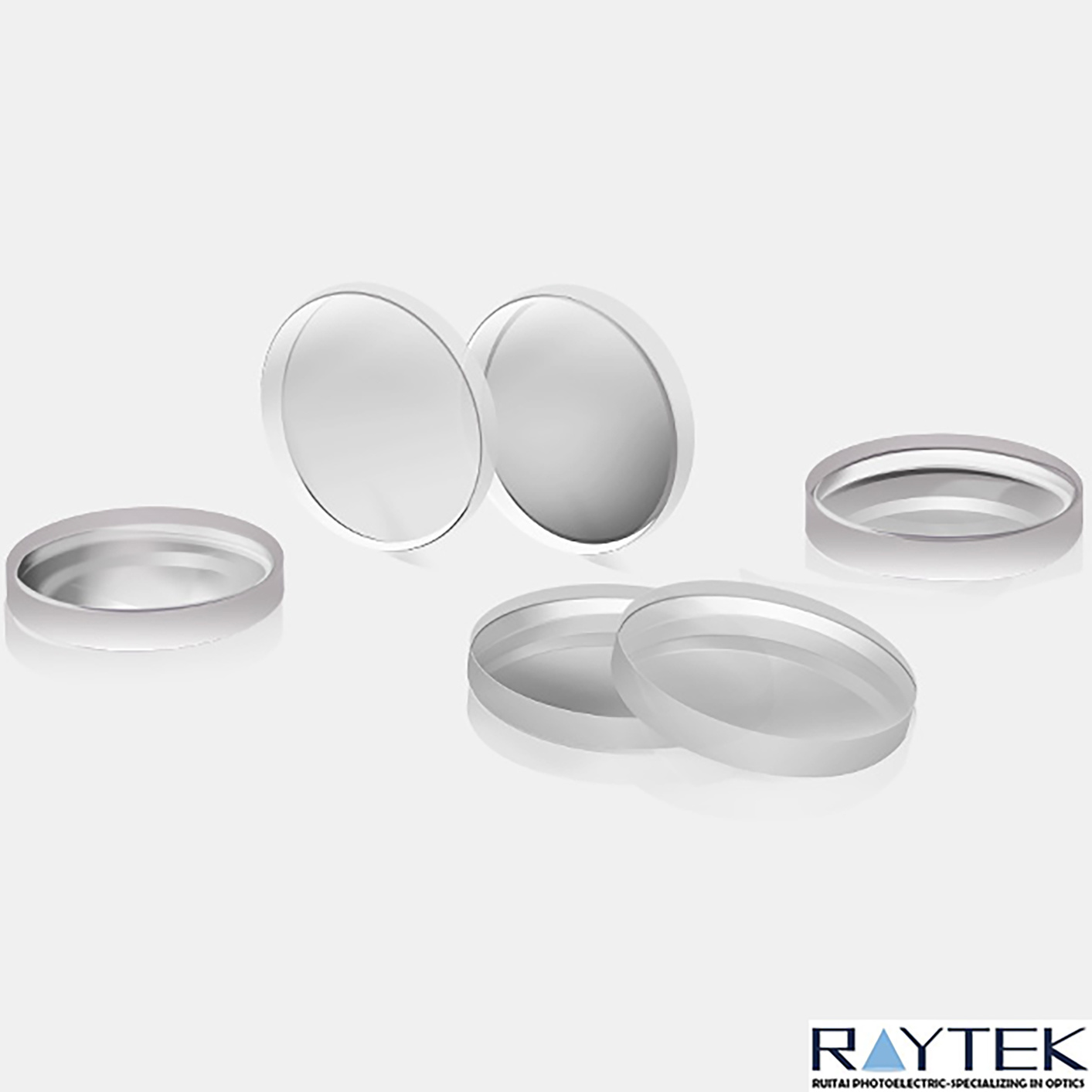

Products Name: UV Fused Silica Plano-Concave Lenses
Alias: UV FUSED SILICA Plano-Concave Lenses,UV FUSED SILICA Plano-Concave Lenses, Optical Concave lens, UV FUSED SILICA optical concave lens, Visible UV FUSED SILICA Plano-Concave Lens, Visible Plano-concave lens, IR Plano-concave lens, NIR Plano-concave lens, 1064nm Plano-concave lens, Uncoated Plano-concave lens,etc
Main Characters:
1).UV grade fused silica substrates
2).≤λ/8 surface irregularity, 20-10 scratch-dig
3).Standardized focal lengths across different lens sizes
Lens Substrates:
UV FUSED SILICA
Coating Type:
Products Highlights:
1).Different grades materials for option.
2).High precision & high surface roughness;
3).Sizes can be customized as per the customers' request
4).Quick lead time and delivery time.
5).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
6).Excellent post-sale quality warranty, with "3R"-return, replace & refund policy
Main Optical Tech Specification:
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Products Name: UV Fused Silica Plano-Concave Lenses
Alias: UV FUSED SILICA Plano-Concave Lenses,UV FUSED SILICA Plano-Concave Lenses, Optical Concave lens, UV FUSED SILICA optical concave lens, Visible UV FUSED SILICA Plano-Concave Lens, Visible Plano-concave lens, IR Plano-concave lens, NIR Plano-concave lens, 1064nm Plano-concave lens, Uncoated Plano-concave lens,etc
Main Characters:
1).UV grade fused silica substrates
2).≤λ/8 surface irregularity, 20-10 scratch-dig
3).Standardized focal lengths across different lens sizes
Lens Substrates:
UV FUSED SILICA
| Optional I: |
UV FUSED SILICA from CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,ETC |
| Optional II: |
Equivalent UV FUSED SILICA Made in China, C-laser own brands |
Coating Type:
| Coating Code: | Coating Type | Wavelength Range |
| AR.14 | Visible Multilayer | 430-700 nm |
| AR.16 | NIR Multilayer | 650-1000 nm |
| AR.18 | IR Multilayer | 1000-1550 nm |
| AR.33 | Laser Line V-Coat Multilayer | 1064 nm |
| - | Uncoated | - |
Products Highlights:
1).Different grades materials for option.
2).High precision & high surface roughness;
3).Sizes can be customized as per the customers' request
4).Quick lead time and delivery time.
5).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
6).Excellent post-sale quality warranty, with "3R"-return, replace & refund policy
Main Optical Tech Specification:
| Tech Data | Description |
| Lens Shape | Plano-Concave |
| Material | UV FUSED SILICA |
| Surface Quality | 20-10 scratch-dig |
| Surface Flatness | λ/4 |
| Surface Accuracy, Irregularity | λ/8 |
| Surface Accuracy, Power | 1.5 λ |
| Centration | ≤3 arc min |
| Chamfers | 0-0.8 mm face width |
| Chamfers Angle Tolerance | 45° ±15°, typical |
| Focal Length Tolerance | ±1 % |
| Clear Aperture | ≥central 90% of diameter |
| Effective Focal Length(EFL) | From -12.5mm to -1000mm |
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
