General Introduction: Schott Sapphire, as one of the hardest, most durable and scratch resistant materials, offers a broad transmission range from UV to mid infrared wavelengths (250 - 5000 nm). The material is able to withstand extreme environmental conditions and temperature changes. SCHOTT offers sapphire materials, Raytek offers the machining process in different supply forms, dimensions, and in customized processing stages.
Products Name: Schott Sapphire
Alias: Schott Sapphire, Schott Sapphire windows, Schott Sapphire materials, Sapphire optical materials, etc
Main Characteristics:
1).Extreme hardness & high mechanical strength (withstands extreme environmental conditions)
2).Excellent thermal conductivity/heat resistance
3).High transmittance (UV to IR)
4).Low dn/dT
5).High electrical resistance (1014 Ohm x cm)
6).High dielectric constant (9.39 from 1.0 MHz to 8.5 GHz)
Thermal Properties:
Mechanical Properties:
Optical Properties:
Main Applying Fields:
Matching Custom Manufacturing Serivce:
Including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
Matching processing equipments;
1).Single side lapping and polishing machines
2).Duble sided polishing machines
3).Ring throwing machines
4).DMG five-axis five-linkage spherical milling machine
5).DMG ultrasonic machining center

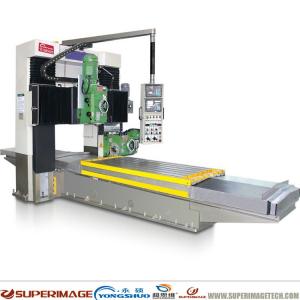

6).Super large scale gantry cnc machining center (2.0*2.0m)
7).Super large scale surface grinder (1.6m*1.6m)
8).CNC cutting machines
9).Thin plate cleaning machines
10).Ultrasonic trough cleaning machines
11).Plane interferometers
12).Two dimensional detectors
13).Ion beam polishing machines
14).Magnetorheological polishing equipments
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Products Name: Schott Sapphire
Alias: Schott Sapphire, Schott Sapphire windows, Schott Sapphire materials, Sapphire optical materials, etc
Main Characteristics:
1).Extreme hardness & high mechanical strength (withstands extreme environmental conditions)
2).Excellent thermal conductivity/heat resistance
3).High transmittance (UV to IR)
4).Low dn/dT
5).High electrical resistance (1014 Ohm x cm)
6).High dielectric constant (9.39 from 1.0 MHz to 8.5 GHz)
Thermal Properties:
| Items | Value |
| Thermal conductivity (60° to c-axis) at 25 °C | 27.21 W/ (m x K) |
| Linear thermal expansion coefficient (60° to c-axis) α(25 °C; 800 °C) | 8.4 10- 6 / K |
| Specific heat at 25 °C | 774.4 J / kg x K |
| Heat capacity at 25 °C | 77.87 J / K x mol |
Mechanical Properties:
| Items | Value | Value |
| Tensile strength | 40,000 - 60,000 psi (design criterion) | 0.27 - 0.41 GPa |
| Flexural strength | 70,000 -130,000 psi (design criterion) | 0.48 - 0.89 GPa |
|
Young's Modulus, E (25 °C) (Modulus of Elasticity) |
50 x 106 psi | 345 GPa |
| Compressive Modulus, K | 55 x 106 psi | 379 GPa |
| Flexural Modulus (Modulus of Rupture) | 52 x 106 psi | 358 GPa |
| Shear Modulus, G (Modulus of Rigidity) | 21.5 x 106 psi | 148 GPa |
| Bulk Modulus, k (Volumetric Modulus of Elasticity) Poisson's Ratio |
35 x 106 psi 0.29 |
241 GPa |
Optical Properties:
| Items | Value |
| Uniaxial Negative |
no = 1.768 ne = 1.760 |
| Birefringence | 0.008 |
| dn/dt (0.6 µm) | 13 x 10-6/°C (visible range) |
| Spectral Emittance | 0.1 (1600 °C) |
| Spectral Absorption Coefficient | 0.1 to 0.2 cm-1 (0.66 micron, 1600 °C) |
| Electrical Volume Resistivity |
1016 Ohm x cm (25 °C) 1011 Ohm x cm (500 °C) 106 Ohm x cm (1000 °C) |
| Dielectric Strength | 480,000 volts/cm (1,200 volts/mil) |
| Dielectric Constant |
11.5 (103 to 109 Hz, 25 °C) parallel to c-axis 9.3 (103 to 109 Hz, 25 °C) perpendicular to c-axis |
| Loss Tangent |
8.6 x 10-5 (@1010 Hz, 25 °C) parallel to c-axis 3.0 x 10-5 (@1010 Hz, 25 °C) perpendicular to c-axis |
| Magnetic Susceptibility |
- 0.21 x 10-6 parallel to c-axis - 0.25 x 10-6 perpendicular to c-axis |
Main Applying Fields:
| Applying Fields: |
1).Infrared applications (e. g. radiometry, guidance, gas analysis, medicine, safety and security) 2).High-pressure and shock-loading applications(e. g. chamber or heater windows in chemical process equipment) 3).Optical applications (e. g. optical components from UV to IR) 4).Scratchproof sapphire watch glasses |
| ***** |
|
Matching Custom Manufacturing Serivce:
Including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
Matching processing equipments;
1).Single side lapping and polishing machines
2).Duble sided polishing machines
3).Ring throwing machines
4).DMG five-axis five-linkage spherical milling machine
5).DMG ultrasonic machining center
6).Super large scale gantry cnc machining center (2.0*2.0m)
7).Super large scale surface grinder (1.6m*1.6m)
8).CNC cutting machines
9).Thin plate cleaning machines
10).Ultrasonic trough cleaning machines
11).Plane interferometers
12).Two dimensional detectors
13).Ion beam polishing machines
14).Magnetorheological polishing equipments
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
