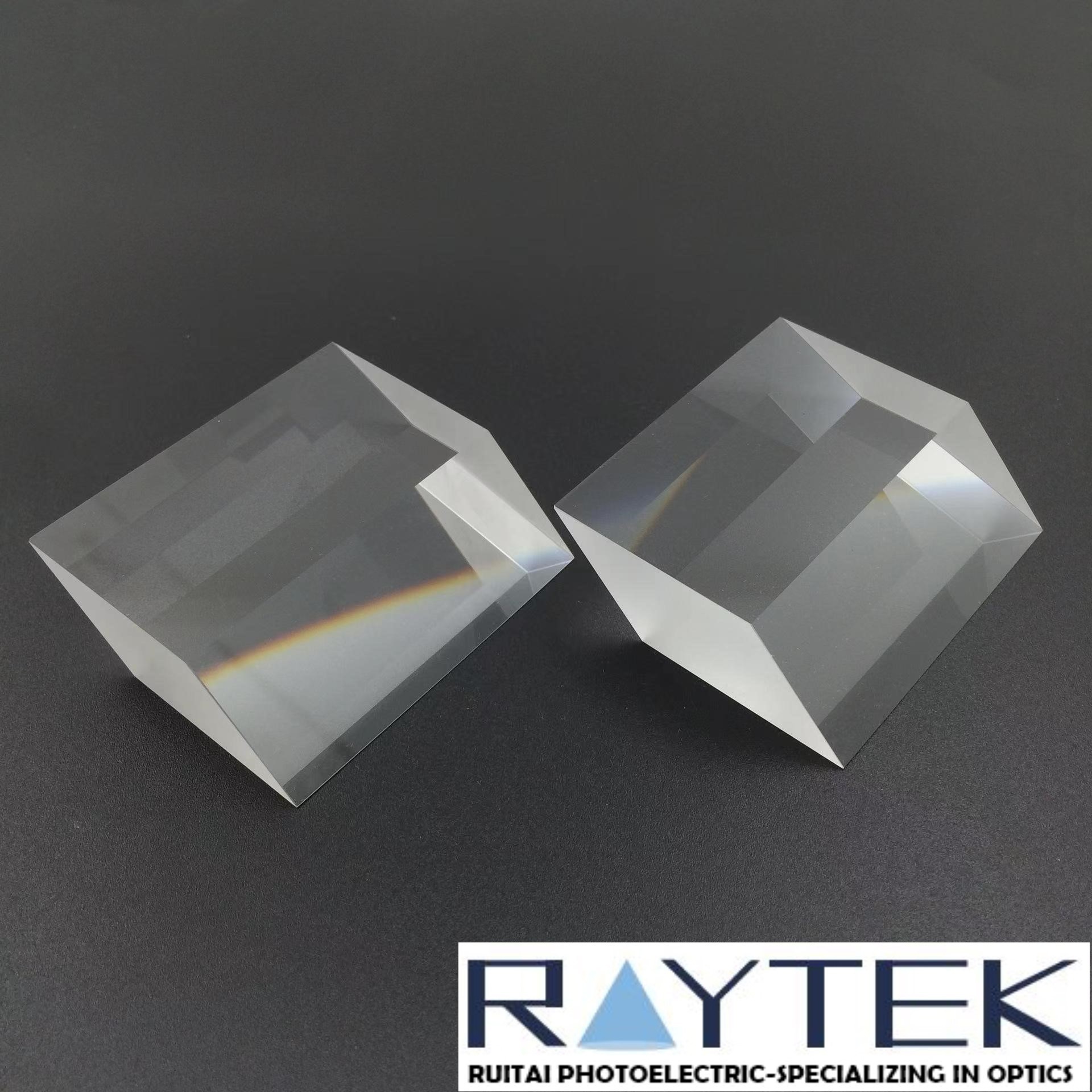

The Rhombus Prism/The Translating Prism/The Rhomboid Prism

Description

Product Description:The rhombus prism can make the light incident prism face undergo two total reflections to produce lateral displacement, but at the same time, it does not change the propagation direction. By coating and gluing, it can be called beam splitter prism or after coating, polarized beam beam splitter prism can be made. Rhombus prisms are currently widely used in microscopes and periscopes.
Product data:
Material: N-BK7; Fused Silica etc.
Dimensions A×B×C: 1×1×1mm~60×60×60mm
Dimensional tolerance: ±0.1 mm / ±0.05 mm
Angle Tolerance: ±3′ / ±30″
Parallelism:≤10″
Surface shape (within 25.4mm range): λ/8@632.8nm
Finish: MIL60-40

Effective aperture: 85%

Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
