1890 CNC Milling Machines 1890 Vertical CNC Machine Center

Description

1890 CNC Milling Machine
1890 Vertical CNC Milling Machine
1890 CNC Machining Tool
1890 CNC Machine Center
1890 CNC Lathe
1890 Digital Control Machine Tool
CNC Machining Center
CNC Machining Tool
Digital Control CNC Lathe
Digital Control CNC Maching Tools:
For cutting
For milling
For drilling
For engraving
For turning
....
Multi-function
High efficiency, High Quality, High Hardness, High Stability
Low cost, Low noise, Low consumable, Less money
Yongshuo CNC Machine Center:
liHigh Precision, High Rigidity, High Stability, High Efficiency, Long Use Life.
Linear rail CNC maching Center usually refers to the rolling guide, which is often used in the linear module of the machine tool industry. We usually call this type of component a "linear guide". The linear guide itself is divided into two parts: slide rail and slider. There are internal rollers or rollers in the slide block, and the length of the slide rail can be customized. It is a modular component, a standarized series of separate products produced by a specialized manufacturer, which can be installed on a machine tool and can be disassembled and replaced after wear. Many machine tools in the field of precision machining mostly use high precision wire rail as machine tool guide, which also greatly guarantees the machining accuracy of machine tools.
The line rail CNC Machine Center is precompressed to achieve zero clearance between the tracks, with high accuracy. In terms of service life, the line rail is much higher than the hard rail.
The cutting force of the line rail is smaller than the hard rail, but for the hard rail, the line rails of many machine tools have greatly improved their carrying capacity.
The application of wire rail is suitable for high speed machine, high speed cutting, suitable for processing products and small precision moulds. Today, more precision machining centers use wire rails.
Main Application Areas:
Automobile manufacturing, spare parts processing;
Toy industry, parts processing and molding
Hardware and mechanical parts processing and rapid prototyping
Spare parts processing and rapid prototyping for electronic and electrical industry
Rapid prototyping and processing of building materials, ceramics and hardware industry
Main Machined Parts:
General type
Light industry
Aviation Industry
Boating Industry
Metallurgy
Instruments and Apparatus
Electric appliance
Stainless Steel Products
Steel structure building
Architectural decoration
Carpentry
Plastic
Aluminium parts
All general-purpose machine parts
Main Parameters Specification List:

CNC Milling Machines. (Vertical CNC Machine Center)
TECHNICAL DATA	YSV1890
CNC Controller System	FANUC or MITSUBISHI or SIEMENS
Workbench Size(MM)	2000*900
Process Distance In X-axis(MM)	1800
Process Distance In Y-axis(MM)	900
Process Distance In Z-axis(MM)	800
Worktable to Spindle Nose(MM)	160-960
Spindle Center to Column Spacing	960
Max. Loading Weight(KG)	1600
T-Groove Width/Spacing(MM)	2-22*165
Range of Spindle Speed(RPM)	Continuously viable 8000/10000 12000 Direct connection
Spindle Taper	BT50
Moving Speed(M/MIN)	20/20/15
Cutting Feed Speed(M/MIN)	8
Repeated Position Accuracy (300mm)	±0.003
XYZ-axis Ball Screw Specification	5512
X-axis Linear Guide Specification(MM)	45Six-slider
Y-axis Linear Guide Specification(MM)	45Four-rail
z-axis Linear Guide Specification(MM)	55Six-slider
Principal Axis Motor(KW)	18.5/22
Tool Capacity	24
Floor Space(M)	4.5*3.2*3.3
Weight(T)	13.3

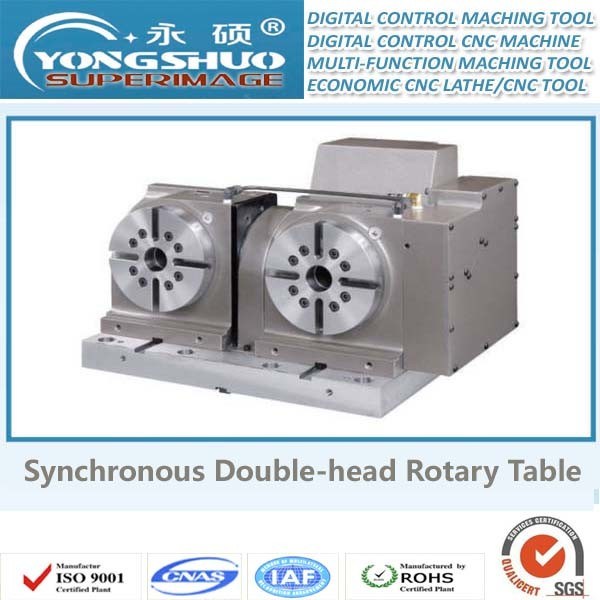

* Note: 4-Axis Rotary Tables & 5-Axis Rotary Tables and matching system can be configurated as per the request of the users.
