Corning Ule 7972 Ultra Low Expansion Glass/Corning Ule-7972 Glass/Corning Quartz

Description

General Introduction: Corning ULE 7972 Ultra Low Expansion Glass is a titania silicate glass with unique characteristics that  has made it  the material of choice in applications ranging from machine tool reference blocks to solid and lightweight mirror blanks for astronomical telescopes and space satellite applications. Experts in the semi- conductor industry have identified ULE® as a "material of choice" for EUV applications.

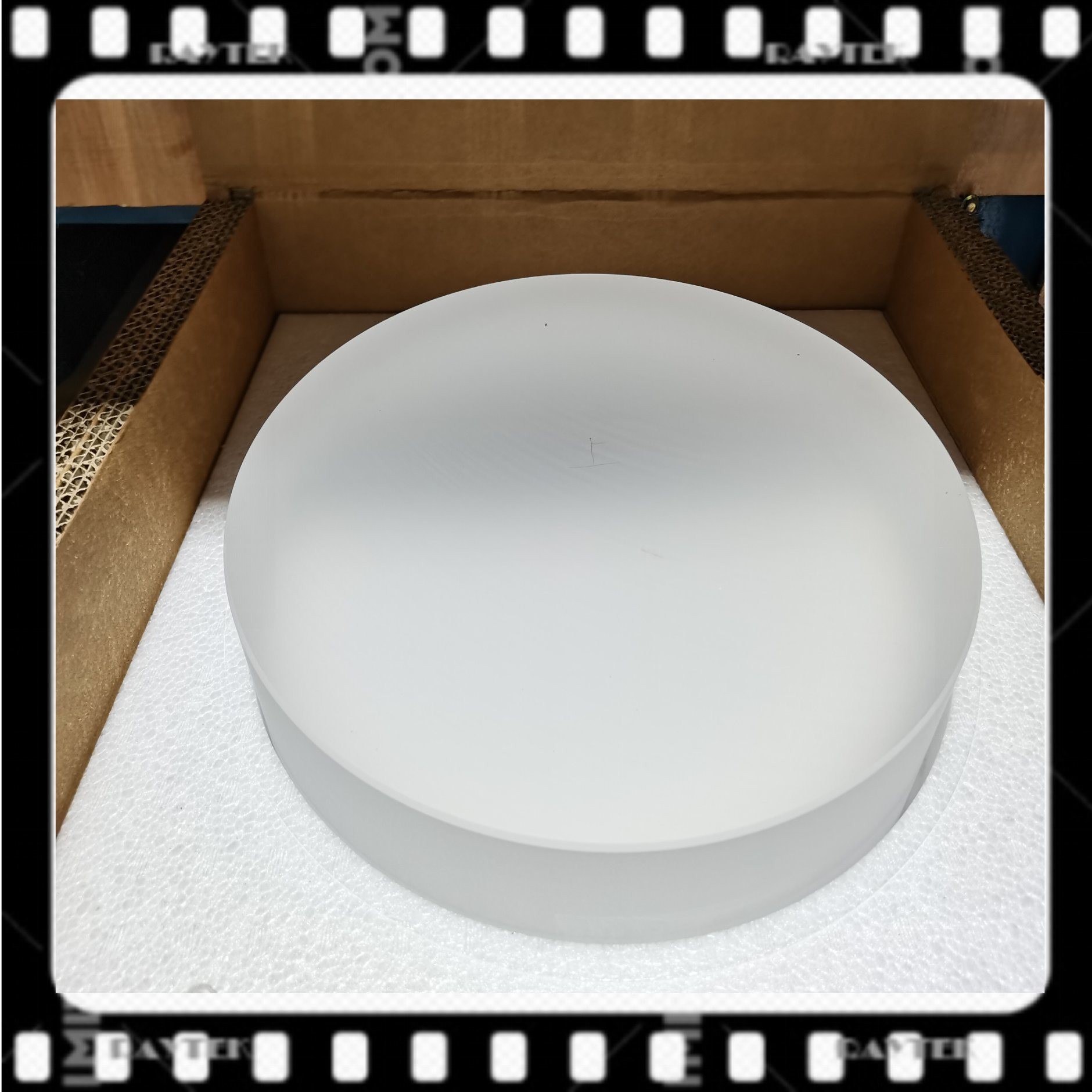

Products Name: Corning ULE 7972 Ultra Low Expansion Glass
Alias: Corning 7972, Corning 7972 glass, Corning 7972 low expansion glass, 7972 glass, ULE 7972, ULE 7972 glass, 7972 low expansion glass ,etc
Optical and Thermal Properties:
Optical Properties Thermal Properties
Mechanical Properties:
1).Poisson's ratio (v): 0.17
2).Ultimate tensile stress (MOR): 49.8 MPa [7220 psi]
3).Knoop Hardness, 200g load: 460 kg/mm2
4).Density (p): 2.21 g/cm3 [0.079 lbs./in3]
5).Specific stiffness (E/P): 3.12 x 10⁶ m [1.23 x 10⁸ in.]
6).Shear Modulus (G): 29.0 GPa [4.20 x 10⁶ psi]
7).Bulk Modulus (K):  34.1 GPa [4.95 x 10⁶ psi]
8).Elastic Modulus (E): 67.6 GPa [9.80 x 10⁶ psi]
Chemical Durability:
1).Excellent resistance to weathering.
2).Exhibits virtually no surface clouding or electrical surface leakage when subject to attack by water, sulfur dioxide, and atmospheric gases.
3).High resistance to attack by nearly all chemical agents..
Main Applying Fields:
Matching Custom Manufacturing Serivce:
Including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
Matching processing equipments;
1).Single side lapping and polishing machines
2).Duble sided polishing machines
3).Ring throwing machines
4).DMG five-axis five-linkage spherical milling machine
5).DMG ultrasonic machining center
6).Super large scale gantry cnc machining center (2.0*2.0m)
7).Super large scale surface grinder (1.6m*1.6m)
8).CNC cutting machines
9).Thin plate cleaning machines
10).Ultrasonic trough cleaning machines
11).Plane interferometers
12).Two dimensional detectors
13).Ion beam polishing machines
14).Magnetorheological polishing equipments
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:

Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.

Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy--return, replace & refund policy.
For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
General Introduction: Corning ULE 7972 Ultra Low Expansion Glass is a titania silicate glass with unique characteristics that  has made it  the material of choice in applications ranging from machine tool reference blocks to solid and lightweight mirror blanks for astronomical telescopes and space satellite applications. Experts in the semi- conductor industry have identified ULE® as a "material of choice" for EUV applications.
Products Name: Corning ULE 7972 Ultra Low Expansion Glass
Alias: Corning 7972, Corning 7972 glass, Corning 7972 low expansion glass, 7972 glass, ULE 7972, ULE 7972 glass, 7972 low expansion glass ,etc
Optical and Thermal Properties:
Optical Properties

Thermal Properties
Mechanical Properties:
1).Poisson's ratio (v): 0.17
2).Ultimate tensile stress (MOR): 49.8 MPa [7220 psi]
3).Knoop Hardness, 200g load: 460 kg/mm2
4).Density (p): 2.21 g/cm3 [0.079 lbs./in3]
5).Specific stiffness (E/P): 3.12 x 10⁶ m [1.23 x 10⁸ in.]
6).Shear Modulus (G): 29.0 GPa [4.20 x 10⁶ psi]
7).Bulk Modulus (K):  34.1 GPa [4.95 x 10⁶ psi]
8).Elastic Modulus (E): 67.6 GPa [9.80 x 10⁶ psi]
Chemical Durability:
1).Excellent resistance to weathering.
2).Exhibits virtually no surface clouding or electrical surface leakage when subject to attack by water, sulfur dioxide, and atmospheric gases.
3).High resistance to attack by nearly all chemical agents..
Main Applying Fields:
Matching Custom Manufacturing Serivce:
Including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
Matching processing equipments;
1).Single side lapping and polishing machines
2).Duble sided polishing machines
3).Ring throwing machines
4).DMG five-axis five-linkage spherical milling machine
5).DMG ultrasonic machining center
6).Super large scale gantry cnc machining center (2.0*2.0m)
7).Super large scale surface grinder (1.6m*1.6m)
8).CNC cutting machines
9).Thin plate cleaning machines
10).Ultrasonic trough cleaning machines
11).Plane interferometers
12).Two dimensional detectors
13).Ion beam polishing machines
14).Magnetorheological polishing equipments
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy--return, replace & refund policy.
For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
