Description
General Introduction: The Raytek plano convex lens with 660-1380nm antireflection film is designed to meet the stringent requirements of ultrafast laser applications, and coated with antireflection film optimized for ultrashort pulse. This antireflection film will be applied to our standard UV fused silica lens.
UV fused quartz is a kind of amorphous silica, which has high purity and can provide the maximum transmission from 195 to 2100 nm. The amorphous, colorless quartz glass has very low thermal expansion coefficient and good optical properties, and has excellent transmittance in the ultraviolet region. The transmittance and uniformity of the crystal are higher than that of quartz crystal, and there is no inherent orientation and temperature instability in crystal form. It does not emit fluorescence under ultraviolet light and is resistant to radiation. For high energy applications, the high purity of fused quartz eliminates the micro defects that may cause laser damage.

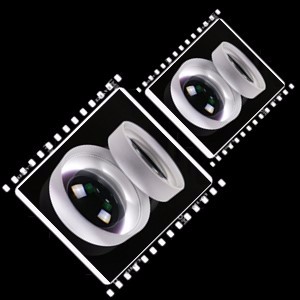

Products Name: NIR Ultrafast UVFS Plano-Convex Lenses
Alias: Ultrafast UVFS Plano-Convex Lenses, UVFS Plano-convex lens, UV Plano-convex lens, Ultrafast plano-convex lens, Fused silicon plano-convex lens, UV fused silicon plano-convex lens, UVFS lens,NIR fused silicon lens, Near-IR Fused Silicon Lens,etc
Main Applying: Ultrafast laser application, etc
Products Highlights:
Our uncoated precision planoconvex lenses are polished to a strict tolerance and use a master test plate to ensure minimal wavefront distortion to meet the stringent requirements of laser electro-optic focusing applications. Strict surface quality tolerance minimizes scattering and unnecessary diffraction effects. Our standard precision lens has a surface quality of 40-20 scratch pitting and a surface power of 1.5λ. We also offer economical lenses with 60-40 scratch pitting surface quality to provide superior performance at a lower price.
Antireflection coating optimized for ultrafast laser
Our broadband ultrafast antireflection coatings are specially optimized for ultrafast laser wavelengths of 660-1380 nm to provide low group velocity dispersion (GVD) performance. This is shown in the figure AR.UF The results of ar.16 and ar.18 are compared with those of our standard films with similar wavelength
1).Ultrafast 660-1380 nm antireflective coatings
2).UV grade fused silica substrate
3).Surface irregularity ≤λ/8, 20-10 scratch-dig
4).Full bandwidth design for laser.
5).Standard focal length for different lens sizes
6).High precision & high surface roughness;
7).Sizes can be customized as per the customers’ request
8).Quick lead time and delivery time.
9).Matching super optics custom and processing capacity, including Moulding, CNC machining, Polishing, Particle beam processing, Magnetic flux conversion processing, Grinding, Coating, Lightweighting, Custom Shaping, Counterbores, Drilling & Coring, Edge & Bevel Polishing,3D Contouring, Bevels & Chamfers, Steps & Slots, Laser Cutting & Marking, Metrology & Inspection, Precision Pitch Polishing, Double-Sided Polishing, Optical Assembly, Measuring, etc.
10).Excellent post-sale quality warranty, with “3R”-return, replace & refund policy
Main Tech Specification:
|
Universal Optical Character Tech Data |
|
|
|
Optical Lens Type: |
Plano-Convex Lenses |
|
|
Lens Substrate: |
UV fused silica substrate or custom as per the demand of customers |
|
|
Surface Quality: |
20-10 scratch-dig Or custom manufacturing as per demand |
|
|
Surface Flatness: |
λ/8 |
|
|
Surface Accuracy/Irregularity: |
λ/8 |
|
|
Surface Accuracy,(Power) |
1.5λ |
|
|
Coating Type: |
Ultrafast Optimized Broadband Multilayer Or custom manufacturing as per demand |
|
|
Antireflection Coating Wavelength: |
660-1380nm Or custom manufacturing as per demand |
|
|
|
||
|
Size/Specification Tech Data |
|
|
|
Dia. |
25.4 mm 50.8 mm 12.7 mm 38.1 mm |
6.35 mm 76.2mm Or custom manufacturing as per demand |
|
Effective Focal Length(EFL): |
12.7 mm 16.0 mm 19.0 mm 25.4 mm 33.0 mm 38.1 mm 50.0 mm 50.2 mm 62.9 mm 75.6 mm 88.3 mm 100 mm |
125 mm 150 mm 175 mm 200 mm 250 mm 300 mm 350 mm 500 mm 750 mm
1000 mm as per demand |
|
Other Available Coating Workcraft: |
Uncoated 245-440 nm 430-700 nm 650-1000 nm 660-1380 nm |
1064 nm Or custom manufacturing as per demand |
|
Other Available Lens Substrates: |
UV fused quartz Molded glass Fused silicon glass N-BK7 K9 K7 B270 D-LAK
D-ZK3 |
D-ZLaF52La9 ECO5508 L-BAL 35 (589/611)48 7980/7979/7972/7973/SQ0/1/8655/SK1300/1310 NIFS/BK7/N-SF6/N-SSK/SBL7/Zerodur/CaF2/SIC |
|
|
|
|
Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas: Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with “3R” policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
